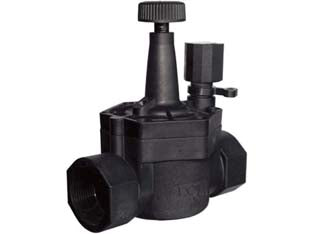

RN 160 PLUS W/FC SOLENOID VALVE

Brand: Rain

Product Description:

This RN 160 PLUS W/FC solenoid valve is made of 30% PA 6 glass fiber, self-cleaning steel rod, steel diaphragm spring with progressive action and pre-assembled diaphragm. It has manual opening under the solenoid, CE certified solenoid, IP 68 9, 24V AC solenoid, minimum pressure of 1.0 bar and maximum of 12 bar, minimum flow rate of 75 l/min and maximum of 325 l/min, and minimum temperature of +4°C and maximum of 70°C.

Main features:

• PA 6 glass fiber at 30%
• Self-cleaning steel rod
• Steel membrane spring with progressive action
• Pre-assembled membrane
• Manual opening under the solenoid
• CE certified solenoid, IP 68 9
• Solenoid 24V AC
• Minimum pressure: 1.0 bar
• Maximum pressure: 12 bar
• Minimum flow rate: 75 l/min
• Maximum flow rate: 325 l/min
• Minimum temperature: +4°C
• Maximum temperature: 70°C
